4"x4"x16" NaI(Tl) Scintillation Detector

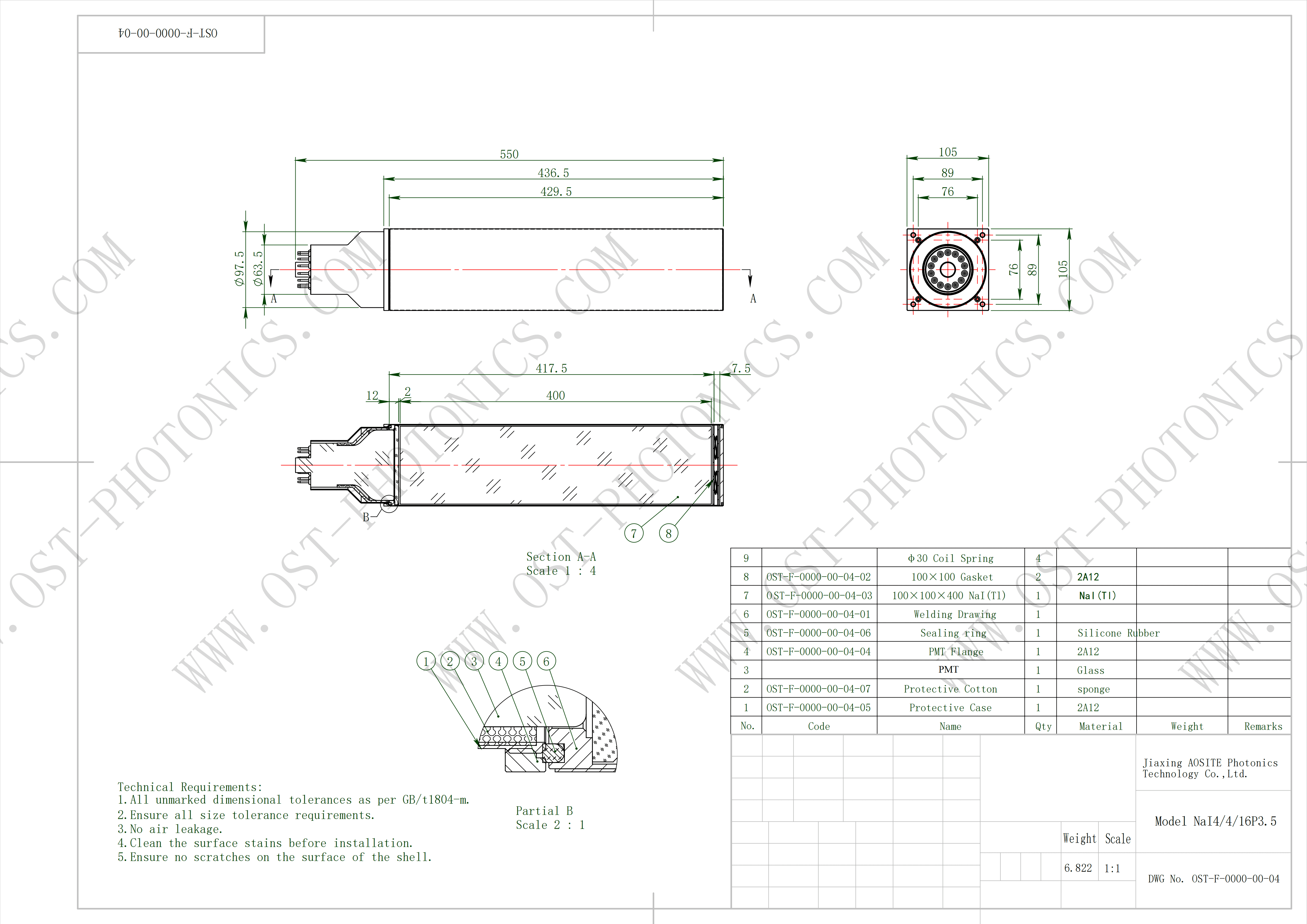

The Model NAI4/4/16P3.5 Scintillation Detector is a hermetically sealed assembly which includes a high resolution 4″x4″x16″ NaI(Tl) scintillator, a 3.5″ photomultiplier tube, an internal magnetic/light shield, an stainless steel housing and a 14-pin connector.

This kind of 14-pin NaI(Tl) detectors have good energy resolution(≤8.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.

Overview

1 ) Model Number: NAI4/4/16P3.5

2 ) Detector Components:

Scintillator：4″x4″x16″ NaI(Tl) Scintillator

PMT: 8-stage Dia. 3.5 inch PMT with 14-pin connector

3 ) Energy Resolution：≤8.5%@662keV(Cs-137)

4 ) Working Temperature: -30~+50℃

5 ) High Voltage: 400~1100V(Positive polarity configuration or Negative polarity configurartion)

6 ) Stainless Steel Housing

Photomultiplier Tube Specifications

Spectral Response Range		300-650 mm
Peak Wave-length (nm)		420 mm
Photocathode Minimum Effective Area		85 mm
Photocathode Material		Bialkali
Window Material		Borosilicate glass
Dynode Structure/Stages		Box-and-grid/8
Cathode Luminous Sensitivity	Min.	80 μA/lm
Cathode Luminous Sensitivity	Typ.	110 μA/lm
Cathode Blue Sensitivity	Min.	11.2 μA/lm
Cathode Blue Sensitivity	Typ.	30 μA/lm
Anode Luminous Sensitivity	Typ.	30 A/lm @1000V
Anode Dark Current	Typ.	2 nA @1000V
Anode Dark Current	Max.	20 nA @1000V
Anode Gain Typ.		2.7×10⁵
Anode to Cathode Voltage (DC)	Max.	1500 V
Rise Time	Typ.	10 ns
Operating Ambient Temperature		-30~+50℃
Suitable Socket		E678-14W
