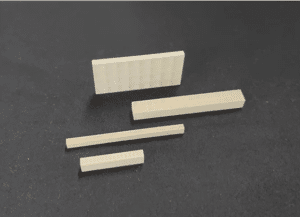

CdWO4 Scintillation Crystal
Cadmium tungstate (CdWO4) is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) on a bialkali PMT is 30 to 50%. The high density and stopping power of CdWO4 make it an efficient absorber, particularly for high energy X-ray. It takes only 3mm to stop up to 150keV photons.
Application
1 ) Security – Luggage, container and cargo scanning
2 ) Medical – Computed Tomography (CT)
Features
1 ) Low afterglow
2 ) High density, high Z
3 ) Withstands high energy radiation damage
4 ) Relatively high light yield
Properties
Density [g/cm3] | 7.9 |
Melting Point [K] | 1598 |
Thermal Expansion Coefficient [C-1] | 10.2 x 10-6 |
Cleavage Plane | |
Hardness (Mho) | 4-4.5 |
Hygroscopic | No |
Wavelength of Emission Max. [nm] | 475 |
Lower Wavelength Cutoff [nm] | 330 |
Refractive Index @ Emission Max | 2.2-2.3 |
Primary Decay Time [ns] | 14000 |
Light Yield [Photons/keVγ] | 12-15 |
Photoelectron Yield [% of NaI(Tl)] (for γ-rays) | 30-50 |
Online Ordering
Product | Specification | Quantity | Pricing(USD) | Delivery time | Online Ordering |
CdWO4 crystal | Size: 15 x 15 x 15 mm All sides polished | 1 | 294 | 3 weeks | |
CdWO4 crystal | Size: 3 x 3 x 20 mm Double sides polished | 5 | 132 | 2 weeks | |
CdWO4 crystal | Size: 20 x 20 x 1 mm All sides polished | 1 | 99 | 2 weeks | |
CdWO4 crystal | Size: 15 x 15 x 0.5 mm Surfaces grinding | 1 | 83 | 2 weeks | |
CdWO4 crystal | Size: Dia. 10 x 0.5 mm Double sides polished | 1 | 63 | 3 weeks |
