SAW Grade Z-Cut Diameter 3 inch x 0.5 mm DSP LiNbO3 Wafer (5 Pieces)

$132.00

Brand: OST Photonics

Quantity: 5 pieces

Delivery Time: 2~3 weeks

Bulk Discount: 10%(≥10 Pieces); 25%(≥25 Pieces)

Categories: ,
Description

Description

Main Specifications

  1. Material: LiNbO3 Single Cryatsl
  2. Grade: SAW Grade
  3. Orientation: Z-cut±15′
  4. Diameter: 76.2±0.2 mm
  5. Thickness: 0.5±0.025 mm
  6. Surface Finish: Double Sides Polished (DSP)
  7. Top Side: Ra <0.5 nm, S/D 20/10
  8. Back Side: Ra <0.5 nm, S/D 20/10
  9. Primary Flat: 22±2 mm perpendicular to -Y±15′
  10. Second Flat: 10±3 mm 270° clockwise PF
  11. Edge: ground with “C” shape
  12. TTV: ＜3 um
  13. PLTV: ＞95%
  14. Warp: <20 um
  15. BOW: <20 um

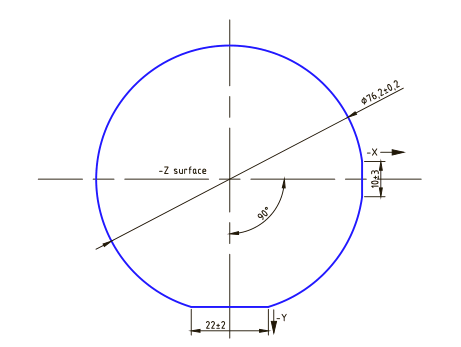

Drawing:

For more information please visit SAW Grade LiNbO3(LN) Wafer – OST Photonics (ost-photonics.com). If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].
