Optical Grade X-Cut Diameter 3 inch x 0.5 mm SSP LiNbO3 Wafers (5 Pieces)

$180.00

Brand: OST Photonics

Quantity: 5 pieces

Delivery Time: 2~3 weeks

Bulk Discount: 10%(≥10 Pieces); 20%(≥25 Pieces)

Categories: ,
Description

Description

Main Specifications

  1. Material: LiNbO3 Single Cryatsl
  2. Grade: Optical Grade
  3. Orientation: X-cut±15′
  4. Diameter: 76.2±0.2 mm
  5. Thickness: 0.5±0.025 mm
  6. Surface Finish: Single Side Polished (SSP)
  7. Top Side: Ra <0.5 nm, S/D 20/10
  8. Back Side: GC#2000
  9. Primary Flat: 22±2 mm perpendicular to +Z±15′
  10. Second Flat: 10±3 mm 225° clockwise PF
  11. Edge: ground with “C” shape
  12. TTV: ＜3 um
  13. PLTV: ＞95%
  14. Warp: <20 um
  15. BOW: <20 um

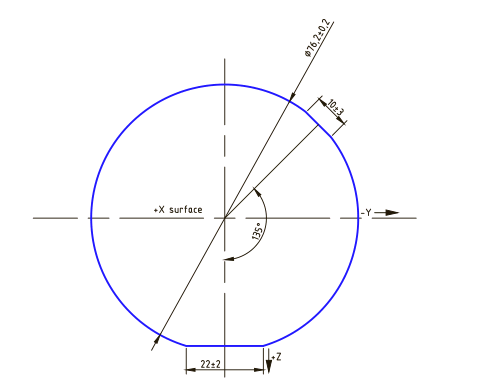

Drawing:

For more information please visit https://www.ost-photonics.com/products/saw%EF%BC%86optical-grade-crystal/optical-grade-linbo3-ln-wafer/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
