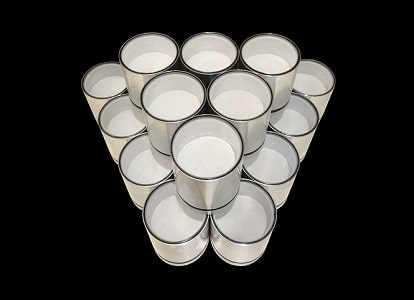

Diameter 40 mm x 40 mm NaI(Tl) Scintillator, Energy Resolution: ≤7.5%@662keV(Cs-137)
Click to enlarge

Diameter 40 mm x 40 mm NaI(Tl) Scintillator, Energy Resolution: ≤7.5%@662keV(Cs-137)

$111.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 2 weeks

Bulk Discount: 10%(≥20 Pieces)

Categories: ,
Description

Description

Specifications

  1. Crystal Size: Diameter 40 mm x 40 mm
  2. Energy Resolution: ≤7.5%@662keV(Cs-137)
  3. Encapsulation: Aluminum housing with an end optical window

Features

  1. High light output
  2. High energy resolution
  3. Good sealing
  4. Emission spectrum well matched with the sensitivity curve of photomultiplier tubes (PMTs)

Applications

  1. Nuclear radiation monitoring
  2. Well logging
  3. Geological exploration
  4. Nuclear medicine

NaI(Tl) Scintillator Description

Thallium doped Sodium Iodide is the most widely used scintillation material. NaI(Tl) is used traditionally in nuclear medicine, environmental monitoring , nuclear physics, aerial survey, well logging and many other applications. The greatest light output among scintillators, convenient emission range coincident with maximum efficiency region of photomultiplier(PMT) with bialkali photocathodes, the possibility of large-size crystals production, and their low prices compared with other scintillation materials compensate to a great extent for the main disadvantage of NaI(Tl), namely, the hygroscopicity, on account of which NaI(Tl) can be used only in hermetically sealed assemblies.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/encapsulated-scintillator/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
