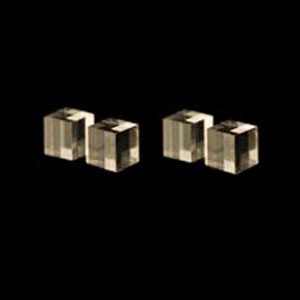

15 mm x 15 mm x 15 mm CdWO4 Scintillation Crystal, All Sides Polished 15 mm x 15 mm x 15 mm CdWO4 Scintillation Crystal, All Sides Polished $294.00
Diameter 20 mm x 0.5 mm CaF2(Eu) Scintillation Crystal, Double Sides Polished
Click to enlarge

Diameter 20 mm x 0.5 mm CaF2(Eu) Scintillation Crystal, Double Sides Polished

$85.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 2 weeks

Bulk Discount: 5%(≥10 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: Diameter 20 mm x 0.5 mm
  2. Polishing: Double sides polished
  3. Diameter Tolerance: ±0.1 mm
  4. Thickness Tolerance: ±0.02 mm

Features

  1. Relatively high light output
  2. High shock resistance
  3. Detects Gamma-rays up to several hundred keV
  4. Useful in health physics applications
  5. Useful in vacuum applications

Main Applications

  1. Health Physics
  2. P-Detector
  3. Radioactivity medical science diagnoses

CaF2(Eu) Scintillation Crystal Description

Calcium fluoride activated by Europium (CaF2:Eu) is a transparent material used for detecting gamma rays up to several hundred keV and for detecting charged particles. Because of the low atomic number, the material’s photofraction is relatively small which prohibits the use in gamma ray spectrometry at higher energies. However, the low atomic number makes CaF2(Eu) an ideal material for the detection of beta particles because of the small amount of backscattering.  Due to its refractive index of 1.47, which is close to that of most PMT windows and optical coupling compounds, a high light collection efficiency can be obtained. Furthermore, the emission maximum at 435nm is well matched to bialkali photocathode photomultiplier tubes.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/caf2eu/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
