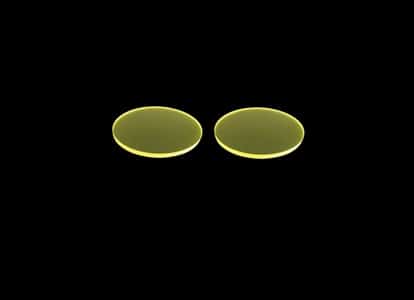

Diameter 10 mm x 1 mm YAG(Ce) Scintillation Crystal, Double Sides Polished
Click to enlarge

Diameter 10 mm x 1 mm YAG(Ce) Scintillation Crystal, Double Sides Polished (10 Pieces)

$370.00

Brand: OST Photonics

Quantity: 10 pieces

Delivery Time: 2 weeks

Bulk Discount: 10%(≥20 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: Diameter 10 mm x 1 mm
  2. Polishing: Double sides polished
  3. Diameter Tolerance: ±0.1 mm
  4. Thickness Tolerance: ±0.02 mm

Features

  1. High electron conversion efficiency
  2. Light yield increases linearly with the total energy of the electron beam
  3. Good resolution
  4. Good thermal conductivity

Main Applications

  1. Scanning electron microscope(SEM)
  2. Electron imaging
  3. Ion beam imaging
  4. Beta, X-ray counter

YAG(Ce) Scintillation Crystal Description

YAG(Ce) is a non-hygroscopic, chemically inert inorganic scintillator, the wavelength of maximum emission at 550 nm is well matched to CCD sensitivity, and it has reasonably fast scintillator(75 ns decay time) with a relatively high light yield of 21% of NaI(TI) scintillator. YAG(ce) can be used in the harsh environment to detect alpha, gamma rays due to its stable physical and mechanical property, especially for electron microscopy applications.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/yagce/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
