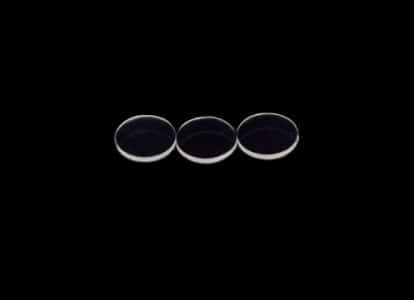

Diameter 10 mm x 0.5 mm CsI(Tl) Scintillation Crystal, Double Sides Polished
Click to enlarge

Diameter 10 mm x 0.5 mm CsI(Tl) Scintillation Crystal, Double Sides Polished (5 Pieces)

$115.00

Brand: OST Photonics

Quantity: 5 pieces

Delivery Time: 2 weeks

Bulk Discount:  5%(≥10 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: Diameter 10 mm x 0.5 mm
  2. Polishing: Double sides polished
  3. Diameter Tolerance: ±0.1 mm
  4. Thickness Tolerance: ±0.02 mm

Features

  1. High light output
  2. Emission wavelength at 550 nm
  3. Compatible with photodiode readout

Main Applications

  1. Security inspection
  2. High energy physic
  3. Nuclear radiation detection

CsI(Tl) Scintillation Crystal Description

CsI(Tl) has a light output of 54 photons/keV and is one of the brightest scintillators known.  It has most of its emission in the long wavelength part of the spectrum (>500nm), it is well-suited for photodiode readout.CsI(Tl) has a very good stopping power, is slightly hygroscopic and with good plastic mechanical properties. Combined with a the relatively good radiation hardness properties, CsI(Tl) is also well suited for High Energy Physics. It also has no cleavage plane and is quite rugged – which makes it well-suited for well logging, space research or other applications where severe shock conditions are encountered.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/csitl/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
