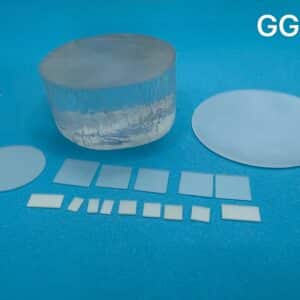

5 mm x 5 mm x 0.5 mm GGG Single Crystal Substrates, Orientation: (110), Double Sides Polished (20 Pieces)

$220.00

Brand: OST Photonics

Quantity: 20 pieces

Delivery Time: 2~3 weeks

Bulk Discount: 10%(≥100 Pieces)

Categories: ,
Description

Description

Specification

  1. Material: GGG single crystal
  2. Orientation: <110>±0.3°
  3. Dimension: 5 mm x 5 mm
  4. Dimension Tolerance: +/-0.1 mm
  5. Thickness: 0.5 mm
  6. Thickness Tolerance: +/-0.05 mm
  7. Polishing: Double Sides Polished
  8. Polished Side Roughness: Ra<0.5 nm

GGG Single Crystal Description

Gadolinium Gallium Garnet (GGG) is a special substrate for magneto-optical thin films. GGG single crystal substrates with different tangential directions can be optimally matched with the crystal lattice of YIG and BIG thin film magneto-optical materials, so as to ensure the successful epitaxial growth of YIG and BIG thin films. GGG crystal is also the best substrate material for making microwave isolators.

If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
