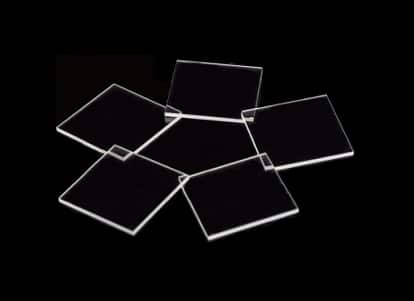

- Crystal Size: 20 mm x 20 mm x 0.5 mm
- Polishing: Double sides polished
- Diameter Tolerance: ±0.1 mm
- Thickness Tolerance: ±0.02 mm
- Fast decay time: 40ns
- High light output
- Excellent physical and chemical characteristics
- Scanning electron microscope(SEM)
- X-ray imaging
- Electron imaging
- Gamma, X-ray counter
YAP(Ce) Scintillation Crystal Description
Cerium-doped yttrium aluminum perovskite (YAP: Ce) is a fast, mechanically strong and chemically resistant scintillation material. Mechanical properties enable precise machining and entrance windows can be made with a very thin aluminum layer deposited directly on the entrance surface of the crystal. YAP:Ce scintillators have very low energy secondary X-ray emissions which makes them desirable for imagining applications. YAP:Ce detectors are used for gamma and X-ray counting, electron microscopy, electron and X-ray imaging screens, and tomography systems.
For more information please visit https://ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/yapce/. If there are any further questions or comments, please contact our sales: firstname.lastname@example.org.
