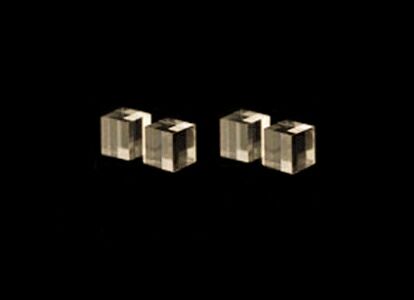

15 mm x 15 mm x 15 mm CdWO4 Scintillation Crystal, All Sides Polished
Click to enlarge

15 mm x 15 mm x 15 mm CdWO4 Scintillation Crystal, All Sides Polished

$294.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 3 weeks

Bulk Discount: 5%(≥5 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: 15 mm x 15 mm x 15 mm
  2. Polishing: All sides polished
  3. Size Tolerance: ±0.1 mm

Features

  1. Low afterglow
  2. High density, high Z
  3. Withstands high energy radiation damage
  4. Relatively high light yield

Main Applications

  1. Security inspection
  2. X-ray computed Tomography
  3. High-energy physics
  4. Nuclear medicine

CdWO4 Scintillation Crystal Description

Cadmium tungstate (CdWO4) is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) on a bialkali PMT is 30 to 50%. The high density and stopping power of CdWO4 make it an efficient absorber, particularly for high energy X-ray. It takes only 3mm to stop up to 150keV photons.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/cdwo4/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
