15 mm x 15 mm x 0.5 mm CdWO4 Scintillation Crystal, Surfaces Grinding
Click to enlarge

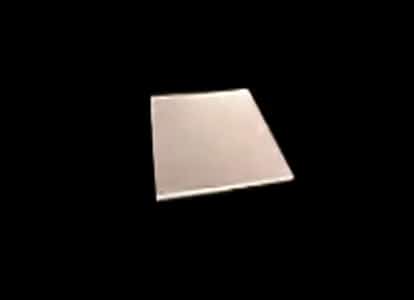

15 mm x 15 mm x 0.5 mm CdWO4 Scintillation Crystal, Surfaces Grinding

$83.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 2 weeks

Bulk Discount: 15%(≥5 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: 15 mm x 15 mm x 0.5mm
  2. Polishing: Surfaces grinding
  3. Size Tolerance: ±0.1 mm
  4. Thickness Tolerance: ±0.02 mm

Features

  1. Low afterglow
  2. High density, high Z
  3. Withstands high energy radiation damage
  4. Relatively high light yield

Main Applications

  1. Security inspection
  2. X-ray computed Tomography
  3. High-energy physics
  4. Nuclear medicine

CdWO4 Scintillation Crystal Description

Cadmium tungstate (CdWO4) is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) on a bialkali PMT is 30 to 50%. The high density and stopping power of CdWO4 make it an efficient absorber, particularly for high energy X-ray. It takes only 3mm to stop up to 150keV photons.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/cdwo4/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].
