10 mm x 10 mm x 0.5 mm LaAlO3 Single Crystal Substrates, Orientation: (100), Double Sides Polished (20 Pieces)

$265.00

Brand: OST Photonics

Quantity: 20 pieces

Delivery Time: 2~3 weeks

Bulk Discount: 5%(≥100 Pieces)

Description

Description

Specification

  1. Material: LaAlO3 single crystal
  2. Orientation: <100>±0.3°
  3. Dimension: 10 mm x 10 mm
  4. Dimension Tolerance: +/-0.1 mm
  5. Thickness: 0.5 mm
  6. Thickness Tolerance: +/-0.05 mm
  7. Polishing: Double Sides Polished
  8. Polished Side Roughness: Ra<0.5 nm

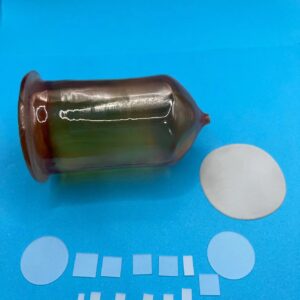

LaAlO3 Single Crystal Description

LaAlO3 single crystal provides a good lattice match to many materials with perovskite structure. It is an excellent substrate for epitaxial growth of high Tc superconductors , magnetic and ferro-electric thin films. The dielectric properties of LaAlO3 crystal are well suitable for low loss microwave and dielectric resonance applications.

For further details, please kindly visit LaAlO3 Substrate – OST Photonics (ost-photonics.com). If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: [email protected].

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at [email protected].
